1/2.3" 3.4mm No Distortion 4K Lens F/2.8 16Megapixel for GoPro Hero 4 3 Xiaomi Yi 4K/4K+ DJI Ph

Buy from Ebay: Lyx Lens


This 3.4mm is a amazing wide angle lens with no ‘fisheye’ distortion. This lens is light weight at 5g and super sharp with 16MP optics. Special optics make this lens ‘rectilinear’ so there is no fisheye distortion at all. Excellent edge to edge sharpness. Perfect for drone and gimbal use and great for general shooting.

Model: lyx3.4-2

Image size: 1/2.3inch φ8mm

Focal length: 3.4mm±5%

Aperture: 2.8mm±5%

Field of View: D: 99°H: 85°V:69°

Distortion: -1%

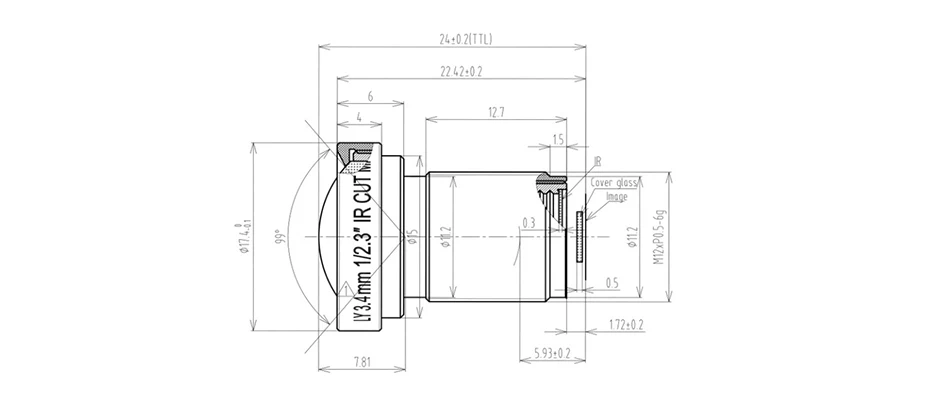

Total Optical Length: 24mm±0.2

Back Focal Length: 3.22mm

Flange Back Length: 1.72mm

Thread Size: M12*P0.5

Optical Structure: 5G2MG+IR

IR Cut Coating:  Tave<=95% @420nm-620nm, Tave=50%@650nm±10nm

Barrel Material: Aluminium Alloy
